I-beam

They are used in the construction of bridges, landscaping of coastal areas, staircases and service platforms and platforms.

I-beam

They are used in the construction of bridges, landscaping of coastal areas, staircases and service platforms and platforms.

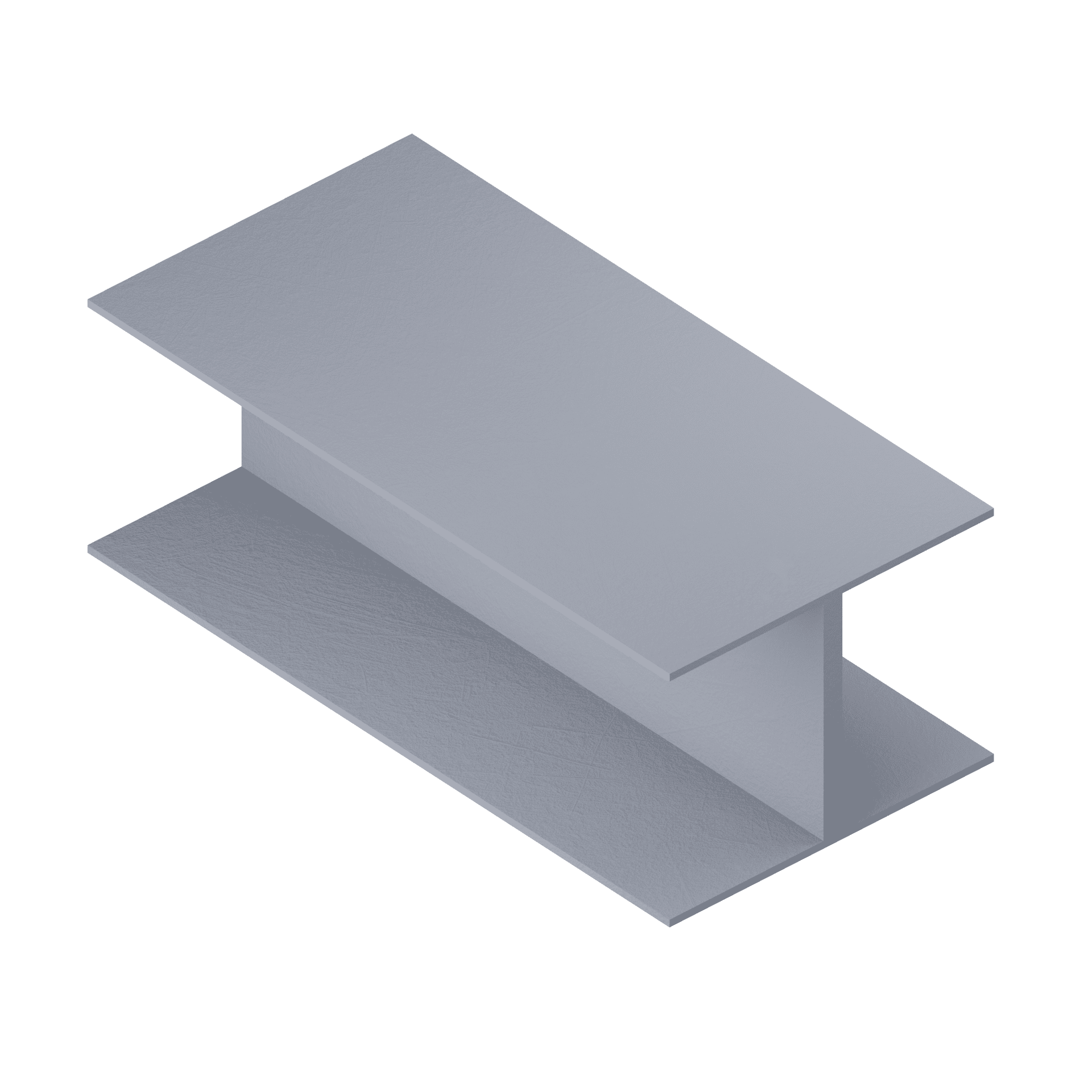

Fiberglass profile having an H-shaped cross section. It is used in the construction of bridges, floors of buildings and structures, service platforms, overpasses, in the construction of sheds, warehouse complexes and hangars for various purposes.

  • Types of resins – polyester (PE), vinyl ester (VE)
  • Flammability group according to GOST 30244 – G1-G3
  • UV resistance

  • RAL catalog A WIDE RANGE OF COLOR SOLUTIONS
  • from -60° to +85°C TEMPERATURE RANGE
  • 300 cm STANDARD LENGTH

I-beam

Таблица типов
Рисунок Высота (В), мм. Ширина (А), мм. Толщина (t), мм. Вес (М), кг/м.
I-beam 1
Таблица типов
Рисунок Высота (В), мм. Ширина (А), мм. Толщина (t), мм. Вес (М), кг/м.
160 160 10 9,150
200 200 15 16,610
305 305 13 22,205
